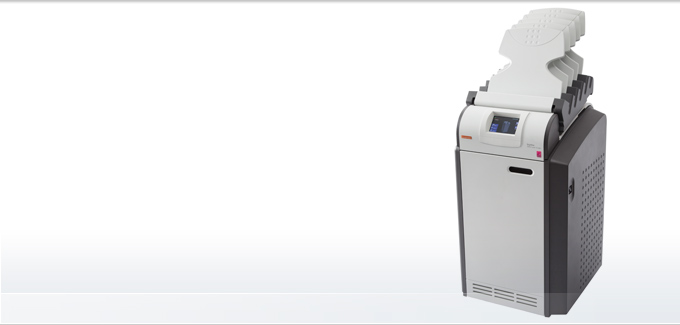

DRYVIEW 6950 Laser Imager

Exceptional image quality, ultimate performance

The CARESTREAM DRYVIEW 6950 Laser Imaging System* provides ultimate performance for demanding, high-volume environments. This laser imager delivers the ideal mix of innovation and affordability with DRYVIEW digital image quality, high image resolution, fast throughput and accommodates a wide variety of applications.

  • Computed Tomography (CT)
  • Computed Radiology (CR)
  • Digital Radiography (DR)
  • Magnetic Resonance Imaging (MRI)
  • Full-field Digital Mammography and CR-Mammography
    *Available in Most Countries

  • System Benefits
  • Specifications
  • Service and Support

System Benefits

With the high-volume DRYVIEW 6950 Laser Imager, you can count on exceptional image quality—even during peak hours—for general radiography and mammography.

Exceptional Image Quality

  • DRYVIEW dry laser imaging technology delivers exceptional diagnostic film quality
  • Automatic Image Quality Control (AIQC) technology automatically calibrates film and imager settings to meet user specifications
  • Extremely sharp 650 ppi resolution on every film size

Fast Throughput

  • High speed operation even during peak hours for optimal efficiency
  • Delivers from 160 to 250 films per hours

Enhanced Mammography Capabilities

  • Accommodates maximum film density of 4.0 preferred for mammography
  • Key test patterns assist with mammography quality assurance procedures and regulatory requirements
  • Built-in densitometer can eliminate the need for manual density measurements on test films
  • Enhanced chest wall detection while printing images enhances workflow and formats images for radiology reading

Greater Efficiency

  • Easy film size changes by simply exchanging film cartridges
  • Accommodates three different film sizes and types online simultaneously
  • World-class service and support to keep your imager running at peak performance
  • Compatible with Carestream Computed Radiography (CR) and Digital Radiography (DR) systems

Intuitive User Experience

  • Multilingual touch-screen user panel
  • Built-in Help interface simplifies instruction, operation and training
  • Minimal re-loading with cartridges that hold 125 film sheets
  • Optional five-bin film sorter
