Carestream DRYVIEW 6950 Laser Imager

CARESTREAM DRYVIEW 6950 LASER IMAGER

DRYVIEW 6950 Laser Imager

Exceptional Image Quality, Ultimate Performance

The DRYVIEW 6950 Laser Imaging System* provides exceptional performance for demanding, high-volume environments. This Laser Imager delivers the ideal mix of DRYVIEW digital image quality and fast throughput – and accommodates a wide variety of modalities.

  • Computed Radiology (CR)
  • Digital Radiography (DR)
  • Magnetic Resonance Imaging (MRI)
  • Computed Tomography (CT)
  • Full-field Digital Mammography and CR-Mammography
Download Product Brochure Contact Us

Exceptional Image Quality with Mammography Printing Capabilities

DRYVIEW dry laser printing technology is legendary for its ability to consistently deliver exceptional diagnostic image quality.

Fast Throughput

High speed operation even during peak hours for optimal efficiency.

Ease of Use with High Efficiency

Easy film size changes by simply exchanging film cartridges in room light.

Accommodates three different film sizes and types online simultaneously

Multilingual touch-screen user panel

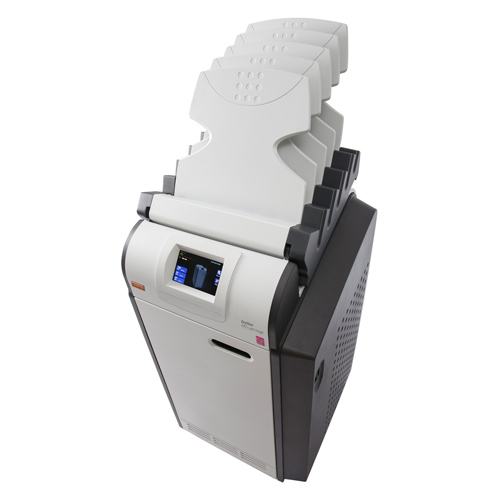

Optional five-bin film sorter for speed and convenience

Mammography optimized

Capabilities include user-selectable test patterns and key control charting parameters and values.

Offers extremely sharp 650 pixels per inch resolution on every film

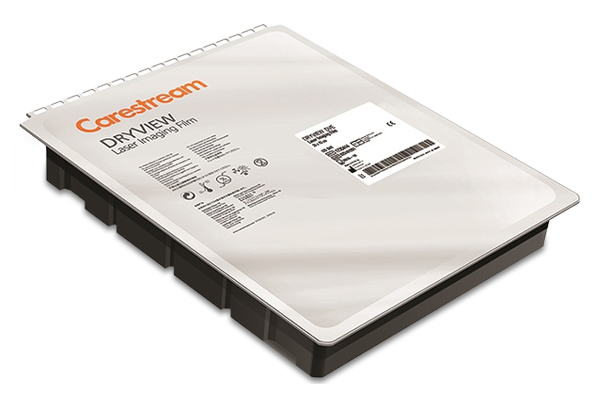

DRYVIEW Laser Imaging Film

DRYVIEW Laser Imaging Film

DRYVIEW Laser Imaging Film offers the simplicity and performance you need to improve productivity.


Features and Specifications

Technology
  • Photothermographic (dry laser)
DRYVIEW Laser Imager Quality;
  • 650 pixels per inch; 39 micron laser spot spacing
Film Sizes Online
  • 3 Film sizes
DRYVIEW Laser Imaging Film
  • Blue 7-mil polyester base
  • Daylight-load film cartridges
  • 125 sheets/cartridge
DRYVIEW Mammography Laser Imaging Film
  • Daylight-load film cartridges
  • Prints images at higher density (Dmax)
  • 125 sheets/cartridge
Choice of Film Sizes
  • 14 x 17 in. (35 x 43 cm)
  • 11 x 14 in. (28 x 35 cm)
  • 10 x 12 in. (25 x 30 cm)
  • 8 x 10 in. (20 x 25 cm)
Network Connection
  • Supports printing from DICOM print modalities
DRYVIEW 6950 Laser Imager
