Bendable Digital Radiography Detectors for Industrial NDT

Introduction: The Challenge of Inspecting Curved Industrial Assets

Imagine inspecting a critical pipeline carrying crude oil across hundreds of kilometers. A tiny weld defect can eventually lead to production downtime, environmental hazards, costly repairs, and significant safety risks. For decades, industrial radiographers relied on film radiography and later Computed Radiography (CR) systems to inspect curved surfaces such as pipelines, pressure vessels, storage tanks, and offshore structures. While these technologies served the industry well, they often required multiple exposures, lengthy processing times, and cumbersome workflows.

Today, the Non-Destructive Testing (NDT) industry is rapidly transitioning toward Digital Radiography (DR) and, more recently, toward a revolutionary innovation known as the Bendable Digital Radiography Detector, also referred to as a Flexible DR Detector. This technology is changing how inspectors evaluate critical assets, enabling faster inspections, superior image quality, and greater operational efficiency.

What Is a Bendable Digital Radiography Detector?

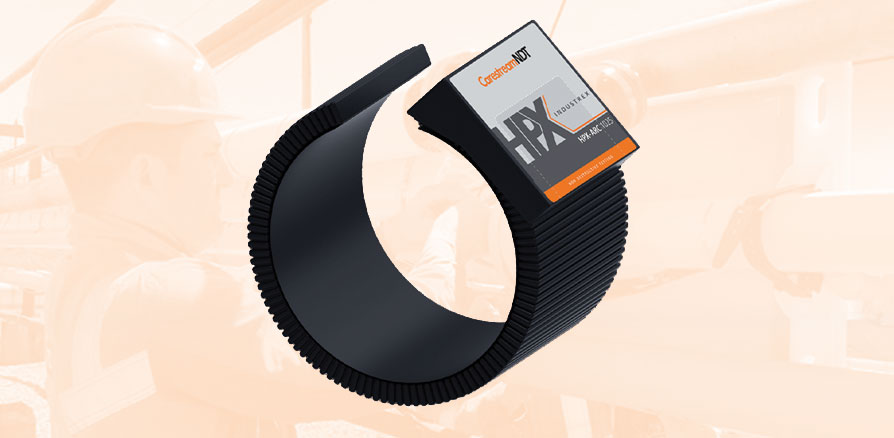

A Bendable Digital Radiography Detector is a flexible X-ray imaging detector engineered to conform to curved surfaces while producing high-resolution digital images. Unlike traditional flat-panel detectors, bendable detectors can wrap around cylindrical or irregularly shaped structures such as: pipelines, circumferential welds, pressure vessels, heat exchangers, storage tanks, aerospace components, and offshore infrastructure. The detector captures X-ray energy and instantly converts it into digital images, enabling real-time defect evaluation and decision-making.

Why Traditional Flat Detectors Have Limitations

Industrial assets are rarely flat. Pipelines, pressure vessels, and structural components often feature curved geometries that create challenges for conventional flat-panel detectors.

When a rigid detector is placed against a curved object, gaps may exist between the detector and inspection surface. These gaps can negatively impact image quality and inspection accuracy.

How Bendable DR Technology Works: A bendable detector is designed to flex around the inspection surface, maintaining closer contact with the asset.

Key Benefits of Bendable Digital Radiography

Superior Image Quality: Because the detector conforms to the asset's geometry, inspectors can obtain sharper and more accurate radiographic images. This improves the detection of: crack, porosity, inclusions, corrosion, lack of fusion, and weld discontinuities³. Improved image quality directly translates into higher inspection confidence and reduced risk of overlooking critical defects.

Faster Inspection Turnaround: Traditional film radiography involves exposure, film development, chemical processing, drying, and interpretation. Digital Radiography eliminates these steps and provides near-instant image availability.

This acceleration in workflow significantly reduces downtime and increases asset availability.

Reduced Number of Exposures: One of the most compelling advantages of flexible detectors is their ability to cover larger sections of curved welds in a single setup. Industry studies indicate that flexible digital detectors can reduce the number of exposures required for circumferential weld inspections, resulting in substantial productivity gains. The benefits include: reduced inspection time, lower radiation exposure, increased operational efficiency, and faster project completion.

Enhanced Pipeline and Weld Inspection: Pipeline inspection remains one of the most demanding applications within industrial NDT. Flexible DR detectors provide several advantages: better conformity to pipe geometry, improved weld coverage, simplified positioning, reduced setup complexity, and enhanced digital image quality. These advantages make bendable detectors particularly valuable in: oil & gas, petrochemical, power generation, offshore operations, and pipeline construction.

Digital Workflow Integration: Modern asset integrity programs increasingly depend on digital ecosystems. Flexible DR systems support: electronic image storage, cloud-based collaboration, remote review capabilities, digital audit trails, and AI-assisted defect analysis. These capabilities align with Industry 4.0 initiatives and predictive maintenance strategies currently being adopted across industrial sectors.

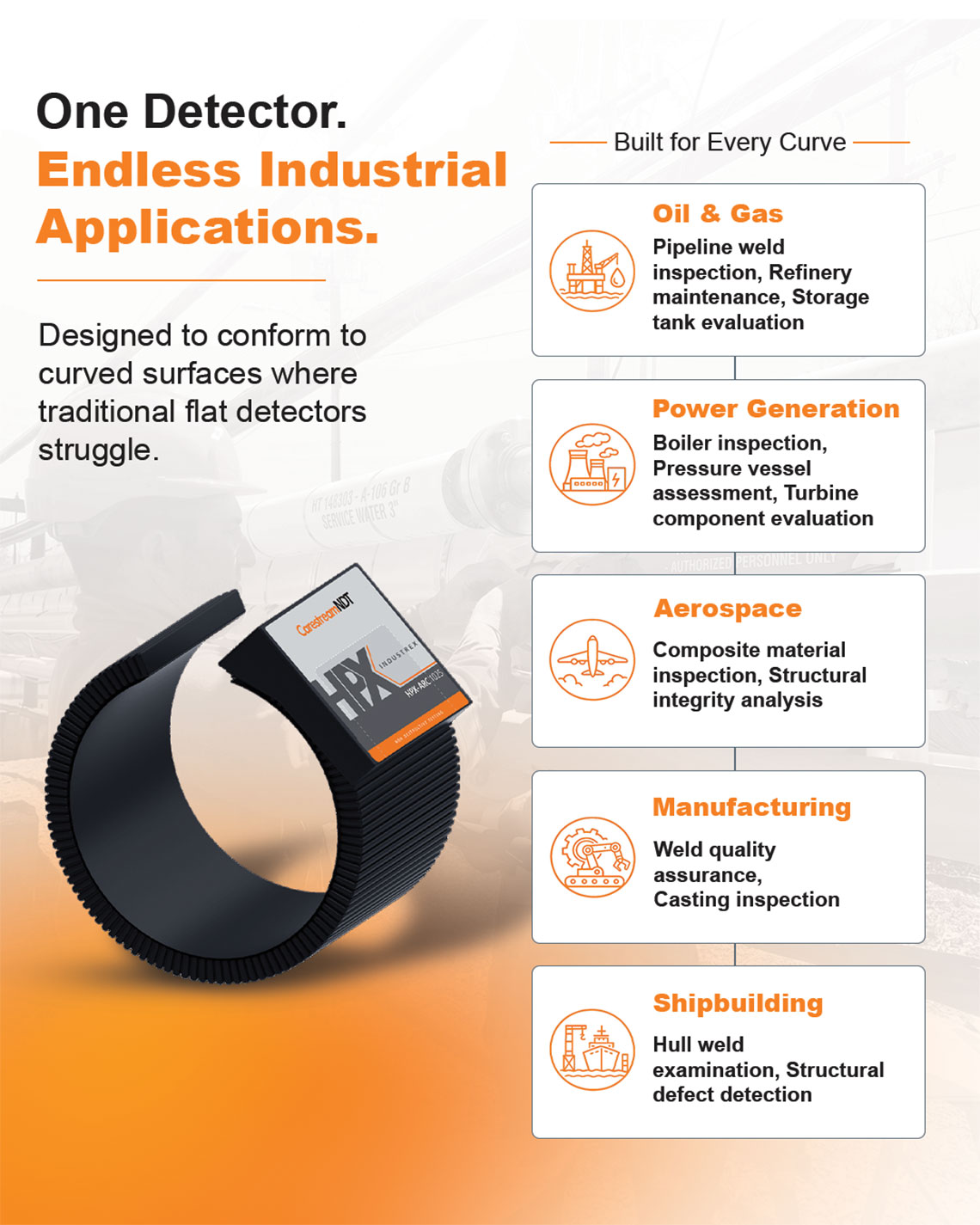

Applications Across Industries

Conclusion

As industries continue to demand faster inspections, higher productivity, improved defect detection, and greater operational efficiency, Bendable Digital Radiography Detectors are emerging as one of the most significant advancements in industrial radiographic testing. By combining the speed of Digital Radiography with the adaptability of flexible detector technology, inspectors can achieve superior imaging performance on curved assets while reducing inspection complexity and operational downtime. For organizations committed to safety, compliance, reliability, and asset integrity, bendable DR technology represents the next evolution of industrial NDT. The future of radiographic inspection is no longer just digital, it is flexible.
