Precision Coating and Manufacturing Capabilities

As a leading innovator in precision single and multilayer coating technology and manufacturing, Carestream Contract Manufacturing Services deliver significant process development advantages. Our contract lab services include chemical and physical testing to support early product characterization or your design for manufacturing understanding. We provide customers with project-ready coating and manufacturing facilities in the United States to develop demanding, precision-coated structures, including a wide range of energy storage, display, medical, optical, electronic and other advanced materials applications. If large volume production of existing products is an area of need for you, Carestream has you covered.

Carestream laboratory, coating, and process development capabilities include:

Precision Coating

Technologies:

  • Single and simultaneous multilayer coating
  • Slide (cascade) and curtain multilayer coating
  • Slot die, dual slot die, roll, gravure, knife, etc.
  • Proprietary techniques

Solutions and Slurries:

  • Aqueous
  • Solvent (MEK, IPA, NMP, Acetone, Toluene, Methanol, Heptane, Methylene Chloride, and many other solvents)
  • Dispersions

Substrates:

  • Film
  • Paper
  • Foil
  • Non-wovens

Substrate Thickness:

  • 12.5 to 400 μm

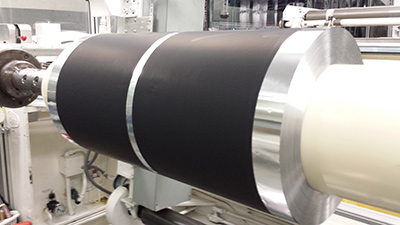

Precision Multilayer Coating

Substrate Widths:

  • 100 to 1,900 mm

Line Speeds:

  • 1 to 550 meters/min.

Dry Coated Thickness:

  • <1um to 400u
Note: Capabilities are dependent upon which coating asset is utilized

Pilot and Production Coating and Development

Pilot Capabilities:

  • Widths from 100 to 300 mm, speeds from 1 to 60 mpm
  • High-efficiency multi-zone drying up to 190° C

Production Capabilities:

  • Widths from 600 to 1,900 mm, speeds from 15 to 550 meters/min
  • Two or three coating stations – one or both sides, depending on coating asset utilized
  • 1 to 20 layers in single pass
  • 3 to 10 zones drying up to 150° C and 425 m of drying path

  • Cleanliness level suitable for optical and display applications

Pilot and Production Capabilities:

  • Solvent and aqueous solutions
  • Temperature-controlled solutions and coating
  • CDT, web cleaning, UV curing, lamination
  • 100% optical inspection to 25 micron resolution
  • Real-time process control and feedback and analysis
  • Variety of coating technologies (slot die, slide, curtain, gravure, etc.)
  • Highly uniform < 2% to 5% thickness variability
  • Slitting capabilities

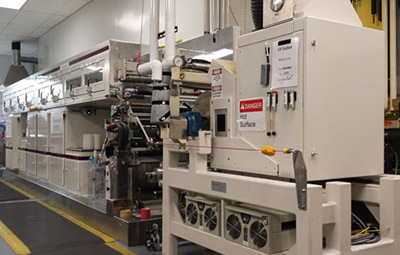

Pilot and Production Coating and Development

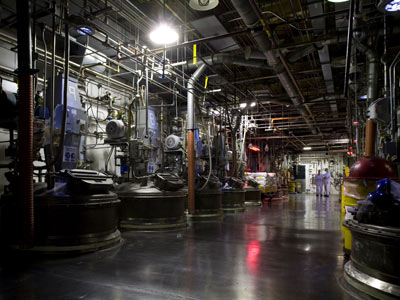

Solution Making and Delivery

Solution Making:

  • Stainless steel mix tanks
  • Capacities of 175 to 6,500 L plus portable pilot tanks
  • Nitrogen inerted and jacketed with heating and cooling
  • Variable speed agitation with multiple blade types
  • Particle dispersion via multiple high-shear options
  • Bulk solvent storage and DI water generation
  • Recipe control and robust standard work
  • Distributive control system with data historization

Solution Delivery:

  • In-line mixing and filtering
  • Closed-loop mass flow control
  • Variety of pumping options
  • De-bubbling
  • Process verification (T, P, flow rate, level control, etc.)
  • Overhead lines with filtration direct from solution making
  • Pails, drums or totes at the coating station for small-volume experiments and production
Solution Making and Delivery

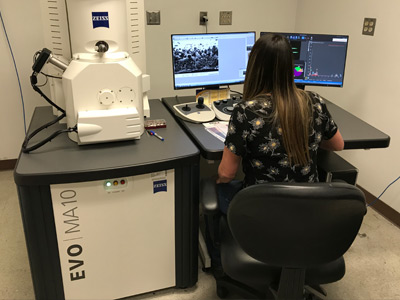

Quality and Analytical Testing

On-Line Inspection and Instrumentation:

  • On-line scanning capabilities to inspect coatings, both in reflection and transmission
  • Full scanner implementation on pilot coater to support development
  • Fully instrumented pilot and production processes with high-speed data acquisition and historization

Test Equipment:

  • Optical Microscopy
  • Scanning Electron Microscope (with EDX)
  • Atomic Force Microscopy (AFM)
  • High-Performance Liquid Chromatograph
  • X-Ray Fluorescence Spectrometers
  • Gas Chromatograph with Mass Spectrometer
  • Thermogravimetric Analysis – Fourier Transform Infrared Spectrometer (TGA-FTIR)
  • Optical Profilometry
  • Inductively Coupled Plasma Spectrometer
  • Dynamic Scanning Calorimetry
  • Dynamic Mechanical Analysis
  • Ultra-Violet / Visible Spectrometers
  • Microtrac Particle Size Analyzer
  • Microtome
  • Titrations
Quality and Analytical Testing



Test Properties:

  • Thickness / Uniformity / Coat weight
  • Viscosity / Density / % Solids / Surface tension
  • Cosmetics (streaks, point defects, etc.)
  • Peel force / Adhesion
  • Retained solvents
  • Porosity / Density
  • Particle size
  • Roughness
  • Contact angle
  • Moisture analysis
  • Conductivity / Resistivity

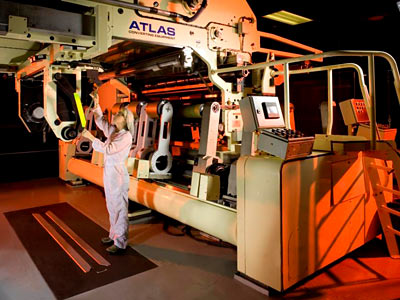

Converting and Packaging

Converting:

  • Film and paper converting
  • Roll and sheet converting capabilities
  • Web inspection available
  • Experience with a variety of support types and thicknesses
  • Controlled atmosphere conditions
  • Safe lighting available
  • Fully automated to manual range of automation
  • Customized to customer requirements

Packaging and Shipping:

  • Experience with a large variety of packaging requirements
  • Variety of formats including bag, cartridge, box, sleeve and case
  • Expertise in domestic and international shipping; including full loads, LTL and ocean containers
  • Worldwide regional locations near your customers
Converting and Packaging

From Concept to Pilot to Commercialization

Carestream’s highly flexible coating assets, combined with our experienced technical and business teams, enable rapid material and product screening, small product sample coating and testing, and efficient scale-up to pilot and production coating equipment. We work with our partners to quickly adjust formulation and coating conditions for low-cost, small-run and experimental coating projects.
From Concept to Pilot to Commercialization

Coating Assessment Laboratory (CAL):

  • Ability to generate precision-coated prototype samples up to six feet long using only a few grams of solution.
  • Provides small-scale, roll-to-roll coating for up to 12-inch wide films, foils, paper and membranes, for larger prototype quantity requirements.
  • Contains custom mixing, solution delivery, coating, drying and analytical equipment used for small-scale, early-stage product and process development.
  • Ability to predict how a given coating solution and substrate system will behave in various manufacturing operations before scaling up to larger pilot-scale and manufacturing-scale equipment.

Pilot Coating:

  • Proprietary coating techniques, enhanced drying methods and streamlined solution delivery systems.
  • Ability to simultaneously use multiple coating techniques at our different locations to enhance collaboration, execute rapid prototyping and scale-up projects, and troubleshoot issues.
  • Pilot coaters modeled after larger coaters to ensure seamless transfers to full-scale manufacturability.

Production Coating:

  • Enables mass production of commercial products at minimal cost and reduced time-to-market for customers coating advanced material solutions onto flexible substrates.
