Electron Micrography Films

Electron Micrography Films offers considerable latitude in performance and flexibility for most electron microscopy applications. EM films are best suited for medium-energy electrons (40 to 100 ky), but acceptable results can also be obtained at higher electron levels. Specially engineered to produce high-quality images in Transmission Electron Micrography (TEM) or electron diffraction studies, there are two choices for  capturing quality images in the transmission electron microscope for life and material science research.

Film Dealer Locator

  • Features
  • Order Info
  • Support

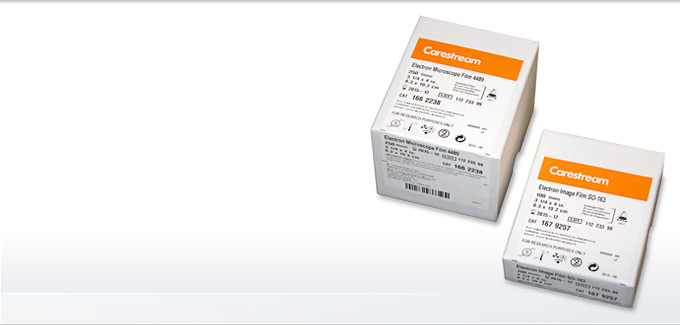

Electron Micrography Film 4489 has approximately half the speed of Electron Image Film SO-163 film, but exhibits less curl and shorter pump-down times. Coated on a 7mils Estar support, Electron Microscope Film offers exceptional dimensional stability and eliminates the use of traditional glass support products.

Electron Image Film SO-163, two times faster than EM 4489 film, offers broad exposure and development ranges. This enables a single film to collect many electrons (with improvements in signal-to-noise ratio), or collect fewer electrons in exposure-limiting situations (when graininess is a reasonable trade-off for higher speed). SO-163’s speed requires longer pump-down times and shows greater film curl. When using Electron Image Film SO-163 for the first time, it is recommended that you recalibrate your microscope exposure.

Comparison of EM Films


S0-163 EM film

4489 EM film

Life Science



Material Science



Order Info
