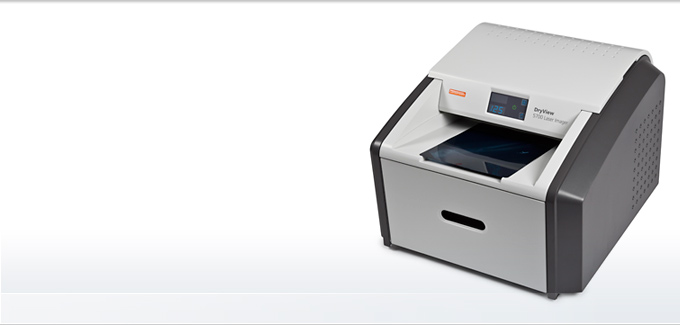

CARESTREAM DRYVIEW 5700 Laser Imager
The DryView 5700 Laser Imager* offers simplicity and affordability for healthcare facilities of all sizes. This innovative tabletop medical imaging system offers a modest acquisition price, which is half of the affordability equation. It also delivers consistently low operating costs. This combination creates a complete picture of true affordability. It’s ideal for computed radiography (CR), digital radiography (DR), computed tomography (CT), PACS Viewer, and magnetic resonance (MR) applications.
*Available in Most Countries
- Features
- Specifications
- Support
Features
Laser image quality
Every image on every film size is printed using true laser technology. Automatic Image Quality Control (AIQC) uses a built-in densitometer to maintain film-to-film consistency.
Broad printing capabilities
Print from CR, DR, CT, MR, PACS Viewers and other grayscale medical film applications.
CR & DR compatibility
Fully compatible with the CARESTREAM CR and DR Systems, the DRYVIEW 5700 Laser Imager is ideal for dispersed or remote printing applications from computed radiography or digital radiography systems.
Ease of operation
No daily or weekly preventive maintenance is required on print heads or film transport rollers to optimize image quality. A simplified user interface, room light film loading, and easy film loading further facilitate use.
Specifications
Technology
Photothermographic (dry laser)
DryView Laser Imager Quality
True laser technology
325 pixels per inch; 78 micron laser spot spacing
Throughput
Up to 45 - 85 films per hour (film size dependent)
Smaller film sizes print faster
DRYVIEW Laser imaging Film
Blue or clear 7-mil polyester base
Daylight-load film cartridges
125 sheets/cartridge
Lifetime (100+ years) film archivability addresses demanding requirements (oncology, pediatrics, etc.)
Choice of Film Sizes
14 x 17 in. (35 x 43 cm)
11 x 14 in. (28 x 35 cm)
10 x 12 in. (25 x 30 cm)
8 x 10 in. (20 x 25 cm)
Network Connectivity
Integrated DICOM interface supports printing from DICOM print modalities
Connect non-DICOM modalities using PACS Link Medical Image Managers
Network connection
10/100/1000 BaseT Ethernet connection to imager (supports jumbo frame)
Dimensions/Weight
Height: 19 in. (47 cm)
Width: 24 in. (61 cm)
Depth: 26 in. (66 cm)
Weight: 120 lb. (54 kg)
Power
180–264 VAC; 50/60 Hz; maximum 4.5 amps
Operating Environment
Temperature: 59 to 91°F (15 to 33°C)
Humidity: 20 to 80% RH, non-condensing
Magnetic field: < 50 Gauss
Altitude: –100 to 10,000 ft (–30.5 to 3,048m)
Support
CARESTREAM Remote Management Services - CARESTREAM Remote Management Services are available for real-time response and analysis to service issues. Allows for automatic distribution of software updates to maintain high performance and long-term reliable operation.
Count on Carestream - DryView Laser Imagers deliver proven great performance and earn consistently high customer satisfaction ratings. DRYVIEW Laser Imagers provide broad connectivity, exceptional image quality, and remarkable reliability. More than 1,700 Carestream Health professionals are dedicated to world-class service and support
For more information about DRYVIEW Laser Imagers and Carestream Health’s broad digital portfolio, contact your Carestream Health representative, or call 1-877-865-6325, ext 547.
