NDT 2530 GC

HPX-DR 2530 PC

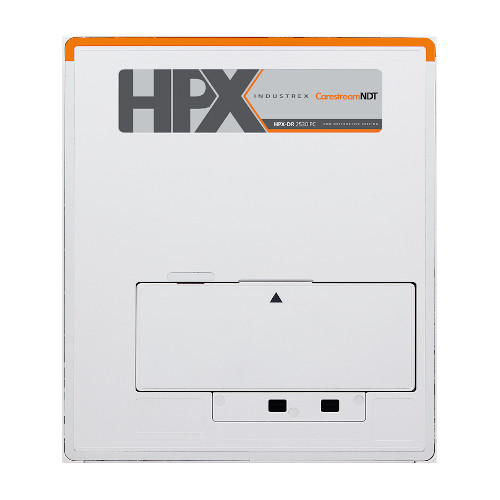

INDUSTREX HPX-DR 2530 PC High-Speed Detector

Compact DR

The HPX-DR 2530 PC Non-Glass detector is designed specifically for reliable, high-speed NDT imaging in a compact and durable DR package. It has a 145 μm resolution and a lower required exposure dose to achieve faster throughput for imaging, which in turn accelerates the process of analysis and reporting.

Our non-glass detector design virtually eliminates costly repairs for broken glass while increasing utilization, uptime and productivity. And with its compact size, the new HPX-DR 2530 PC is ideal for imaging applications in confined areas or in between objects.

Download Product Brochure Contact Us

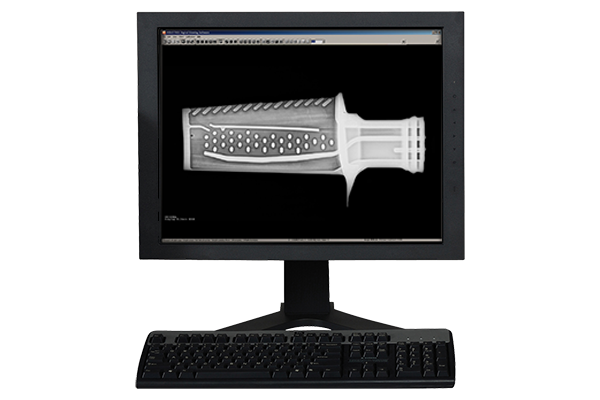

INDUSTREX Digital Viewing Software

INDUSTREX Digital Viewing Software

INDUSTREX Digital Viewing Software incorporates image analysis tools, file sharing and storage management features. Our modular architecture is an all-in-one software suite that eliminates the need to purchase add-on modules for both CR and DR image acquisition.

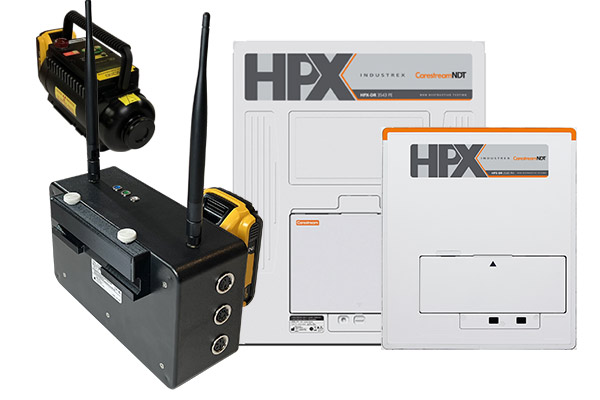

Exposure Interface Box (EIB)

  • An INDUSTREX Digital System accessory for DR.
  • Provides a standalone battery powered Wi-Fi access point to HPX-DR Detectors.
  • Optionally provides a communications interface to support select Golden pulse generator models.
  • The pulse generator interface enables timing coordination of the HPX-DR Detector image capture with the Golden X-ray pulse generation.
  • Battery system interoperability with Golden X-ray Pulse Generators.

Performance Accessories

Optional protective cover for lab use increases detector load limit up to 340 kg. (750 lbs.).

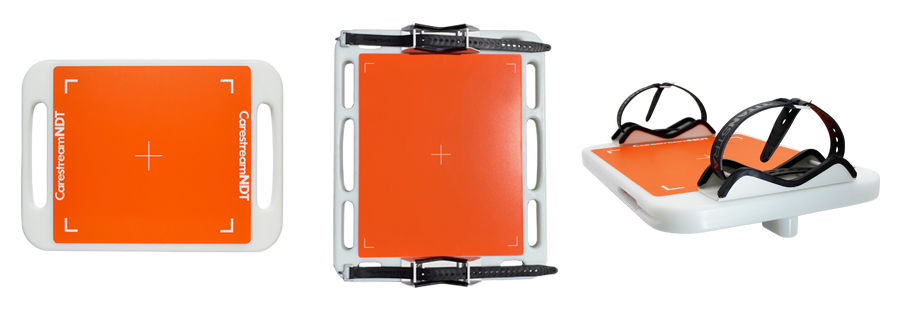

HPX-DR 2530 High-Resolution, Compact Detector Accessories
2 year warranty

Comes with a 2-year warranty and free loaner program!

  • We're so confident in the design and reliability of our new durable detector that we're offering a two-year warranty
  • If your detector ever does need service, we offer a loaner service (US and Canada only) to minimize downtime and avoid expense of purchasing a back-up detector

Features and Specifications

Built for NDT
  • Tungsten shielding for higher cumulative dose while preserving image quality
  • Protective, weatherproof enclosure for use in harsh environments
  • Close-to-edge imaging maximizes surface area for image capture
  • Robust wireless connectivity for faster image transfer and analysis
  • Lithium-ion batteries with battery ‘hot-swap’ to keep the detector running during battery change
Resolution and Size
  • 145 μm resolution for precision imaging and detailed analysis
  • Compact size (250 x 300mm) and thin profile (14.7mm)
Designed for High Throughput
  • Less required dose for shorter exposure times and faster throughput
