DRX-Excel

Affordable Versatility for Smaller Hospitals and Imaging Centers

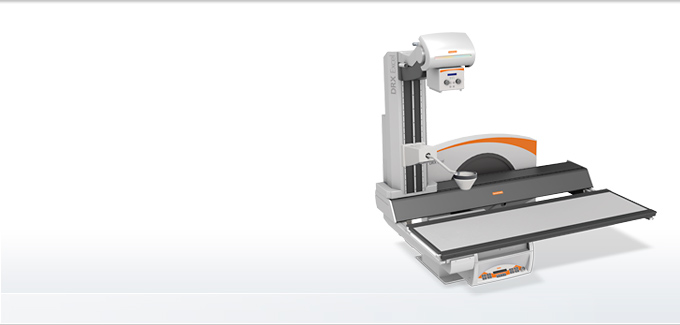

The DRX-Excel System* gives you capabilities for both general radiography and Fluoroscopy exams in a single system and at a very attractive price. The system is also available in a choice of two models to match your needs and workflow:

  • A conventional configuration, utilizing film or CR cassettes or our wireless DRX-Detector for radiology and an image intensifier for the fluoroscopy exam, or
  • A dRF configuration, with a single flat-panel digital detector for both RAD and fluoroscopy.

  • Features
  • High Performance Options

Features

  • Extensive SID capability exceeds competitors, acquiring images at any distance between110 to 180cm

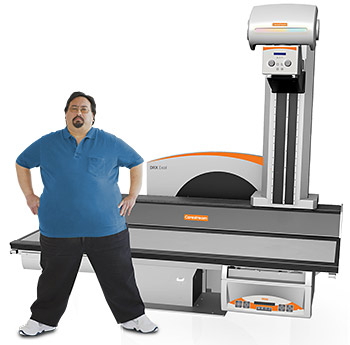

  • Table features a 200kg weight capacity to accommodate heavier patients

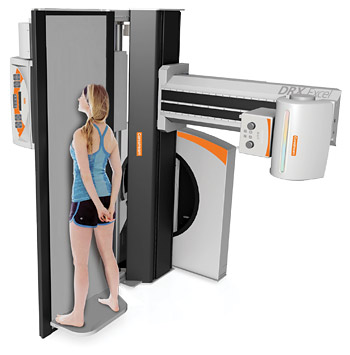

  • +90/- 30 degree tilting to enable all exam types
  • Table offers the lowest fixed-table minimal height of 79cm (31inches) in the industry making it accessible, even for wheelchair patients
  • Control system operation remotely or at patient’s side
  • Motorized movement of tube and column maximizes speed and convenience
  • Offered with either an Image Intensifier* with high resolution CCD camera that maximizes image quality during fluoroscopy or a Flat Panel Detector that offers high image quality fluoroscopy and general radiology images
  • Auto positioning, as a function of extensive anatomical programs, facilitates faster exam set-up times
  • Patient overage of 196cm allows full exploration of even very tall individuals without repositioning
  • Relaxing ambient lighting and selectable music maximize patient comfort
  • DAP measurements allow tracking of the exact radiation dose received by each patient
  • Optional DRX-1 detector offers the power of the X-Factor and allows easy positioning for cross-table and weight-bearing exams

* The DRX Excel model is not available in the US and Canada. Please see the  DRX Excel Plus.

   DRX-Excel

High Performance Options
