Should an NDT inspector use a rigid flat panel detector or a bendable DR detector?

The choice between a rigid flat panel detector and a bendable DR detector depends on the application, geometry, accessibility, and inspection objectives. Traditional rigid flat panel detectors can face positioning challenges when inspecting curved structures, while bendable detectors are designed to address those specific challenges.

How do rigid flat panel detectors and bendable DR detectors compare for pipe and curved surface inspection?

Rigid flat panel detectors offer moderate performance for pipe inspection and limited capability for curved surface imaging, often requiring multiple detector placements. Bendable DR detectors offer excellent pipe inspection performance and outstanding curved surface imaging by conforming directly to the surface, with faster setup time and optimized pipeline weld inspection results.

How do rigid flat panel detectors and bendable DR detectors compare for field deployment and accessibility?

Rigid flat panel detectors provide good field deployment and moderate accessibility in tight spaces. Bendable DR detectors provide excellent field deployment and high accessibility in tight spaces. Both technologies support real-time positioning and high-resolution imaging.

Will bendable DR detectors replace rigid flat panel detectors in industrial NDT?

Rigid flat panel detectors continue to deliver exceptional image quality and reliability, while bendable DR detectors unlock new possibilities for inspecting curved structures, pipelines, and hard-to-reach assets. For industries such as oil and gas, aerospace, power generation, and advanced manufacturing, the future of NDT will likely involve a combination of both technologies, leveraging the strengths of each to maximize inspection accuracy, efficiency, and safety.

Carestream NDT | Comparison of Rigid Flat Panel and Bendable Digital Radiography Detectors: How Bendable Technology is Reshaping Industrial NDT

Comparison of Rigid Flat Panel and Bendable Digital Radiography Detectors: How Bendable Technology is Reshaping Industrial NDT

Q: What is a bendable DR detector?

A bendable DR detector represents the next evolution in digital radiography. Unlike conventional rigid panels, these detectors can conform to curved geometries, enabling closer contact with inspection surfaces. Key characteristics include flexible architecture, conformity to curved objects, faster setup for pipe inspections, improved access in confined spaces, reduced need for multiple exposures, and enhanced field portability.

Aug 17, 2026

Discover the key differences between rigid flat panel detectors and bendable DR detectors in industrial NDT. Learn how Digital Radiography is transforming weld inspection, pipeline testing, aerospace quality control, and field radiography with faster, safer, more accurate imaging.

The Challenge Hidden in Every Curve

Imagine an NDT inspector standing beside a large-diameter pipeline in a remote oil field. The weld seam must be inspected quickly, accurately, and without disrupting operations. Traditional film radiography often requires multiple exposures and lengthy processing times. Even conventional rigid flat panel detectors can face positioning challenges when inspecting curved structures. As industries continue their transition toward Digital Radiography (DR), inspectors increasingly face a critical question, should they use a rigid flat panel detector or invest in a bendable DR detector? The answer depends on the application, geometry, accessibility, and inspection objectives.

Understanding Digital Radiography in NDT

Digital Radiography (DR) has emerged as one of the most significant advancements in industrial non-destructive testing because it enables immediate image acquisition, improved workflow efficiency, and enhanced defect detection capabilities compared with traditional film-based methods^¹. At the heart of every DR system lies the detector. Today, these detectors broadly fall into two categories:

Rigid Flat Panel Detectors (FPDs)
Bendable Digital Radiography Detectors

What is a Rigid Flat Panel Detector? A rigid flat panel detector is a solid-state digital imaging device designed with a fixed, non-flexible structure. These detectors are widely used across aerospace manufacturing, casting inspection, composite testing, and laboratory-based radiographic environments^².

Key Characteristics

High image quality
Excellent detector stability
Suitable for flat or easily accessible surfaces
Proven technology with widespread adoption
Robust performance in controlled inspection environments

Flat panel detectors are among the most commonly used digital detectors in industrial radiography because of their excellent sensitivity, spatial resolution, and immediate image acquisition capabilities^².

What is a Bendable DR Detector? A bendable DR detector represents the next evolution in Digital Radiography. Unlike conventional rigid panels, these detectors can conform to curved geometries, enabling closer contact with inspection surfaces. Recent innovations from Carestream NDT have introduced bendable detector technologies capable of conforming around pipes and curved industrial structures while maintaining high-resolution image acquisition^³.

Key Characteristics

Flexible architecture
Conforms to curved objects
Faster setup for pipe inspections
Improved access in confined spaces
Reduced need for multiple exposures
Enhanced field portability

Flexible detector technologies have been specifically engineered to improve inspection efficiency in challenging field environments while maintaining image quality standards required for industrial applications^⁴.

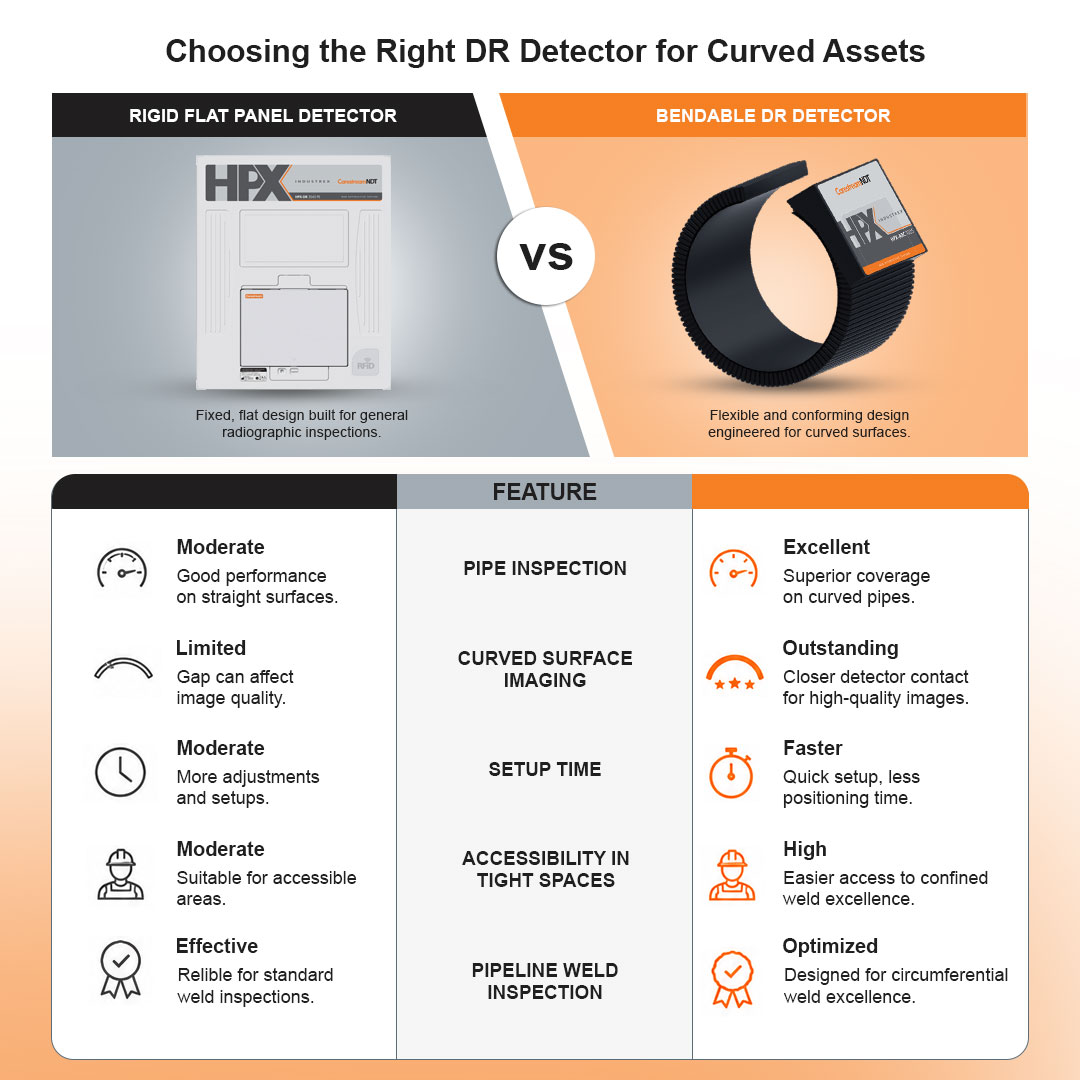

Carestream NDT | Choosing the Right DR Detector for Curved Assets

Feature	Rigid Flat Panel Detector	Bendable DR Detector
Physical Design	Fixed Structure	Flexible & Conforming
Pipe Inspection	Moderate	Excellent
Curved Surface Imaging	Limited	Outstanding
Field Deployment	Good	Excellent
Accessibility in Tight Spaces	Moderate	High
Setup Time	Moderate	Faster
Detector Positioning	Multiple Placements May Be Needed	Conforms to Surface

Conclusion

Industrial radiography is undergoing a profound transformation. While rigid flat panel detectors continue to deliver exceptional image quality and reliability, bendable DR detectors are unlocking new possibilities for inspecting curved structures, pipelines, and hard-to-reach assets. For industries such as oil & gas, aerospace, power generation, and advanced manufacturing, the future of NDT will likely involve a combination of both technologies by leveraging the strengths of each to maximize inspection accuracy, efficiency, and safety. As Digital Radiography continues to evolve, bendable detector technology is not simply an innovation rather it represents a new way of thinking about industrial inspection workflows and asset integrity management.

Ready to Transform Your Industrial Radiography Workflow?

Choosing the right Digital Radiography detector can significantly impact inspection speed, image quality, operational efficiency, and overall asset integrity. Whether your application involves flat components, complex welds, large-diameter pipelines, or challenging field inspections, selecting the appropriate detector technology is critical to achieving reliable and repeatable inspection results. Discover how Carestream NDT's advanced Digital Radiography solutions, including both rigid flat panel and innovative bendable DR detector technologies, can help optimize your inspection workflows while improving productivity and reducing operational downtime. Connect with the Carestream NDT experts today to explore the right digital radiography solution for your inspection requirements and learn how next-generation detector technology is redefining industrial non-destructive testing.
