CARESTREAM DRX-Evolution DR Room
A digital x-ray room with a custom fit
The CARESTREAM DRX-Evolution DR Room is a versatile digital radiography system with configurable, modular components that combine to fit your space, workflow and budget.
Perform a wide variety of general radiographic exams with remarkable convenience, productivity and patient comfort. Powered by portable, wireless DRX detectors you can upgrade to a digital x-ray room today with three configurations—automated, hybrid and standard—that can grow to fit your needs tomorrow.
|
Flexibility meets versatility in the world’s first DR room powered by Carestream’s DRX detectors.
Increased Productivity
- Images are ready for viewing and manipulation on the console in seconds
- Wireless detector provides cordless positioning freedom
- One space-saving console controls all medical imaging functions
- Hardware and software options boost facility workflow
Broad Versatility
- Choose from one, two or three detector options to perform many types of general radiography exams, including long-length imaging
- Configure with a wall stand and/or fixed table to simplify patient positioning for a broad range of projections
- Easy to use, easy to move overhead tube is designed for positioning convenience and efficiency
Proven DRX Image Quality
- Low dose DRX-1C detector delivers digital x-ray images easily and cost effectively with increased DQE and MTF
- Increased latitude and high-contrast image detail with optional DIRECTVIEW EVP Plus Software
-
Software options maximize image quality for pediatrics, orthopedic exams, trauma and other specialties
|
|
|
Your facility is unique. So are your x-ray equipment options.
The DRX-Evolution digital rad room is available in three configurations: fully automated, hybrid or standard.
|
Fully Automated
|
Hybrid
|
Standard
|
|
DRX Detector(s)
43 x 43 Fixed Detector
|
DRX Detector(s)
43 x 43 Fixed Detector
|
DRX Detector(s) |
|
Easy Positioning Table
- Four-way float
- Accommodates patients up to 600 lb (272 kg)
- Double-tap foot pedals
|
Easy Positioning Table
- Four-way float
- Accommodates patients up to 600 lb (272 kg)
- Double-tap foot pedals
|
Easy Positioning Table
- Four-way float
- Accommodates patients up to 600 lb (272 kg)
- Double-tap foot pedals
|
| Integrated Operator Console |
Integrated Operator Console |
Integrated Operator Console |
|

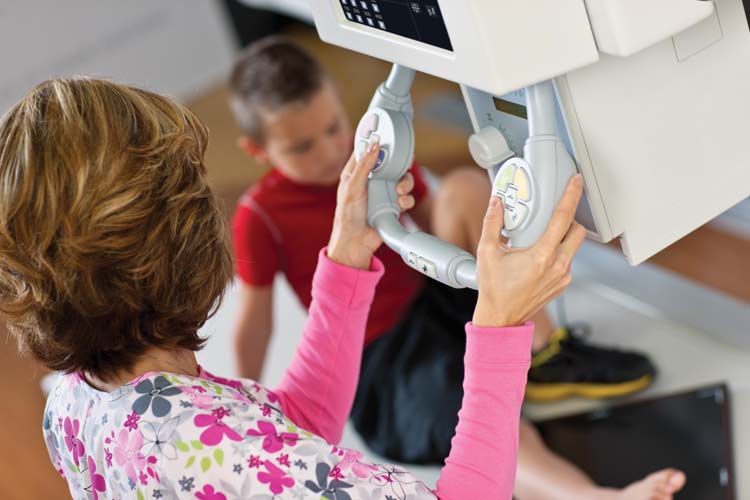

Motorized Overhead Tube with Touch Screen
- Auto-positioning
- Auto-tracking
- Auto-centering
|
Non-Motorized Overhead Tube with Touch Screen
- Easy to use controls
- Review key data and change techniques
|
Non-Motorized Overhead Tube with Touch Screen
- Easy to use controls
- Review key data and change techniques
|
|

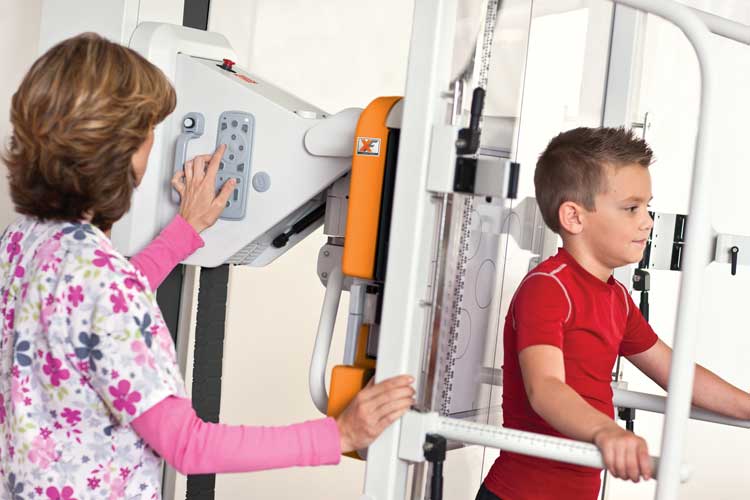

Motorized Wall Stand
- Tilt
- Angulation
- Portrait/Landscape Rotation
- Extensive vertical travel
|
Motorized Wall Stand
- Tilt
- Angulation
- Portrait/Landscape Rotation
- Extensive vertical travel
|
Non-Motorized Wall Stand
- Easy to move
- Optional tilt / rotation
- Extensive vertical travel
|
DRX-Evolution Options
DIRECTVIEW SPT1 Radiographic Table Brochure
The SPT1 is a multifunctional, height adjustable patient exam table with 4-way floating-top. This mobile patient table with brakes at every wheel is designed for easy patient positioning. The pedestal design can be freely positioned at any angle to the detector. Hydraulic control elevates the table - with no external power source or clumsy cable. The table can be anchored to the floor with an optional pivot kit.
Automatic and Manual Long-Length Imaging
Capture long bone images in the upright and supine position with fully integrated automatic acquisition and stitching software.
Accessories:
- DAP Meter
- Rolling detector holder
- Table detector holder
- Grid holder
- Table pad
- Compression band
- Table handgrips
- Handheld remote control
- Babix Holder
- 24 x 30 Cassette adapter
- 3MP Monitor
- DR Total Quality Tool
|
The detector that goes and grows with you
At the heart of the DRX Family is the world’s first wireless, cassette-sized detector that works across all your imaging equipment. Carestream’s 2nd generation DRX wireless detector is faster, lighter and even more versatile to support greater workflow and productivity.
Image quality
- Combines the high quality of Carestream DR systems with immediate image access to help speed decisions on patient care
- Optional three-second exposure mode enhances imaging with lower power x-ray generators and accommodates thicker body parts
Enhanced workflow

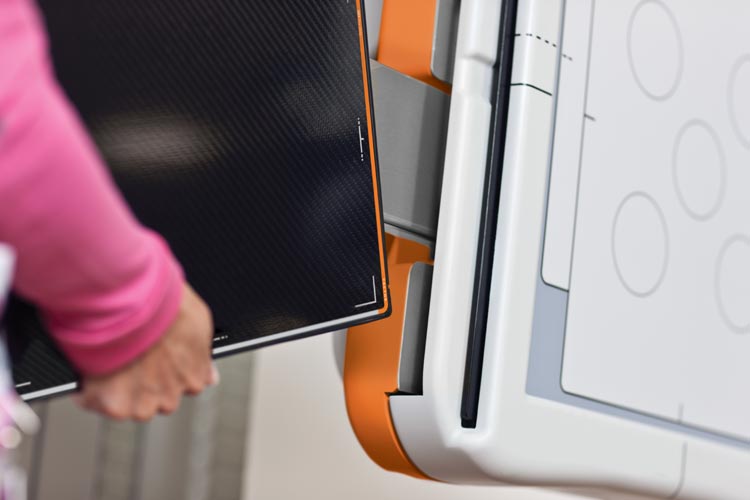

- Simply slides into table or wall-stand Bucky and can be used for tabletop projections like a conventional cassette
- Easily moves to any room or mobile DRX system
- Multiple exposures for long-length imaging (Not available in the USA) can eliminate the need for CR and expedite orthopedic exams
Convenience
- Weighs 7.5 lbs (3.4 kg) and is easily transportable to boost productivity
- Carbon fiber twill front panel and powder coat finish on back panel improve handling
- Supports 375 lbs (170 kg) of distributed weight and up to 250 lbs (113 kg) on a four centimeter diameter
- Sleep mode extends battery life to up to 190 exposures or 14 days on standby mode, which means fewer battery changes and lower costs
Features are available on DRX-1 detectors or the DRX-1C cesium iodide detectors. The CARESTREAM DRX-1C detector’s high DQE and MTF make it an ideal fit for dose sensitive applications like pediatrics. More than 3,300 DRX detectors are in clinical use worldwide.
|
|
|
|
Protect Your DRX Detector
The CARESTREAM DRX Accident Protection Plan can be added to your warranty or service agreement to protect your investment and minimize downtime. The plan allows a replacement detector at a fraction of the full cost should damage occur in normal clinical use.
DRX Accident Protection Plan Brochure
|
|
Experience the X-Factor of Carestream’s approach to DR Systems.
Carestream is changing the DR game and putting you in control of the move to digital. The world’s first cassette-sized wireless detector platform gives you the X-Factor and makes the most of your capital investment. It meets today’s needs and positions you for growth. X-Factor is a better way to care for patients.
Compatible
- A single detector platform works across a broad portfolio of DRX equipment
- Convert an existing x-ray room or mobile system to digital radiography in a day
Scalable
- Take a modular approach to your capital investment
- Customize a DR solution that fits your workflow and budget
- Add DR systems as your facility expands and grows
Flexible
- Get the most out of your DRX investment 24 hours a day, seven days a week
- Share the detector with a mobile imaging unit for morning rounds, a radiology room DR suite in the afternoon and the emergency department at night
- Use a common software platform to speed your exam process
More than 3,300 DRX detectors are helping healthcare facilities around the world unlocked the benefits of wireless DR with the Carestream DRX Family.
X-Factor. Changing the Way You Think About DR.
|
|
|
